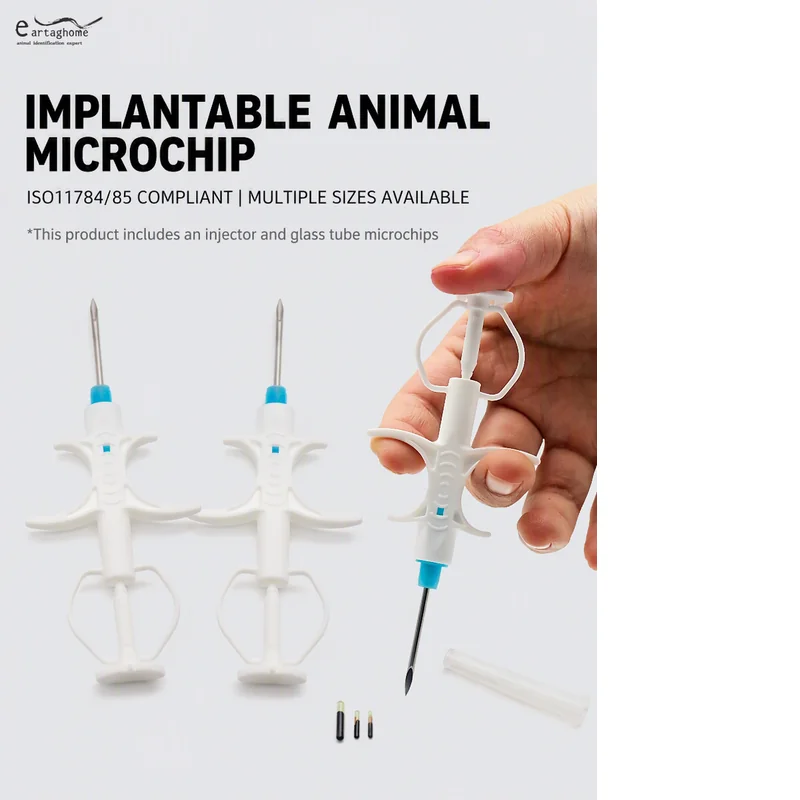

Implantable Animal Microchip SAH2220
A small and reliable microchip for animal identification. It uses FDX-B technology at 134.2 kHz and complies with ISO 11784/11785. The chip is sealed in bioglass for safe implantation and is available in different sizes for livestock and pets.
- ISO 11784/11785 compliant
- FDX-B technology
- 2 kHz operating frequency

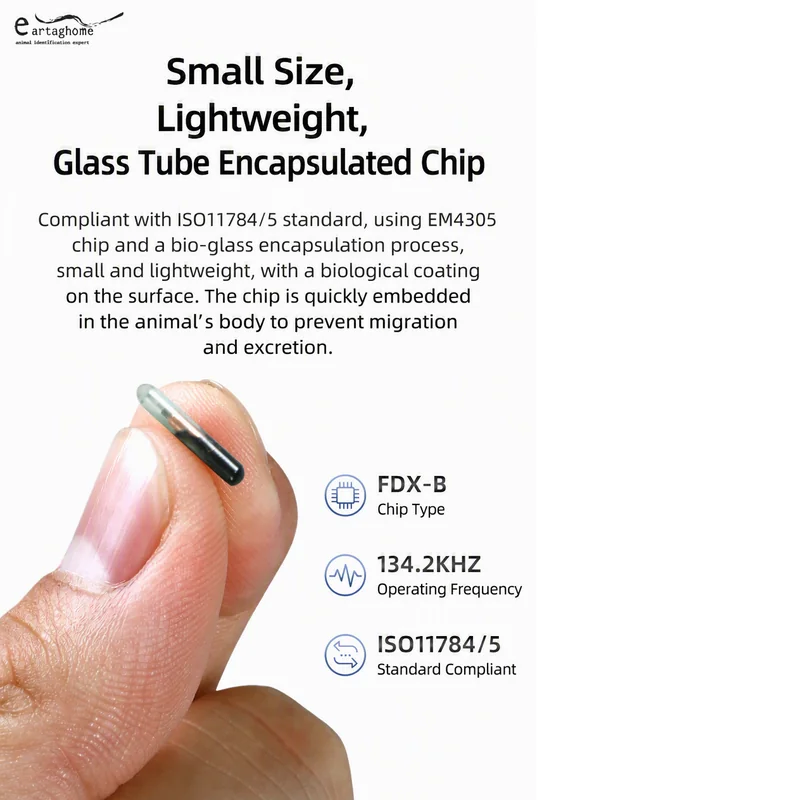

- Bioglass encapsulation
- Small and lightweight
- Available in multiple sizes
- Sterile, ready-to-use applicator
- Designed for animal identification and traceability
Products Categories
Get A Free Quote

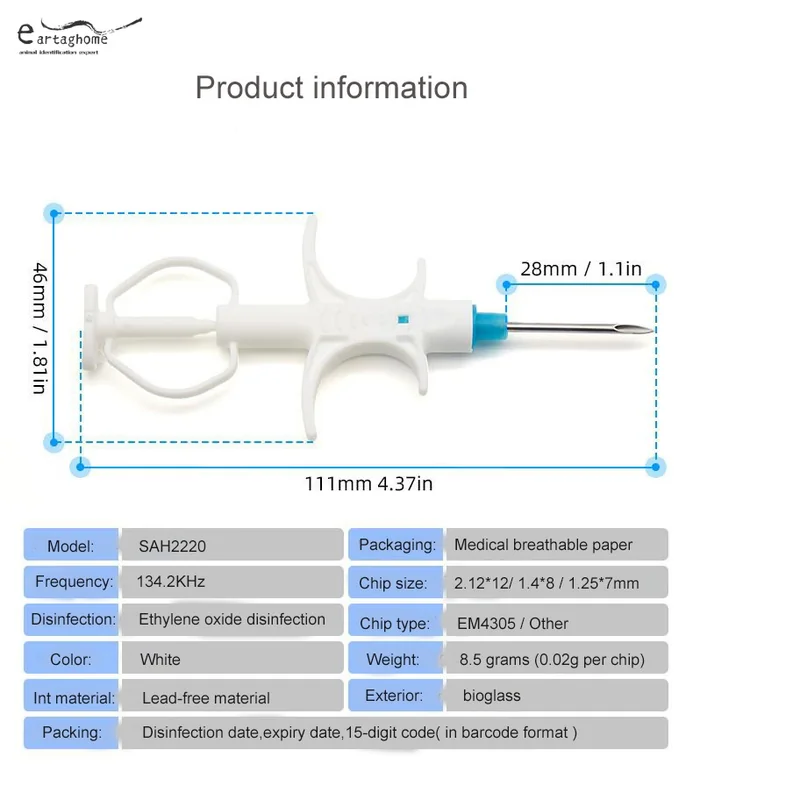

Product Specifications
| Parameter | Description / Technical Details |
| Product Name | RFID Animal Identification Microchip |

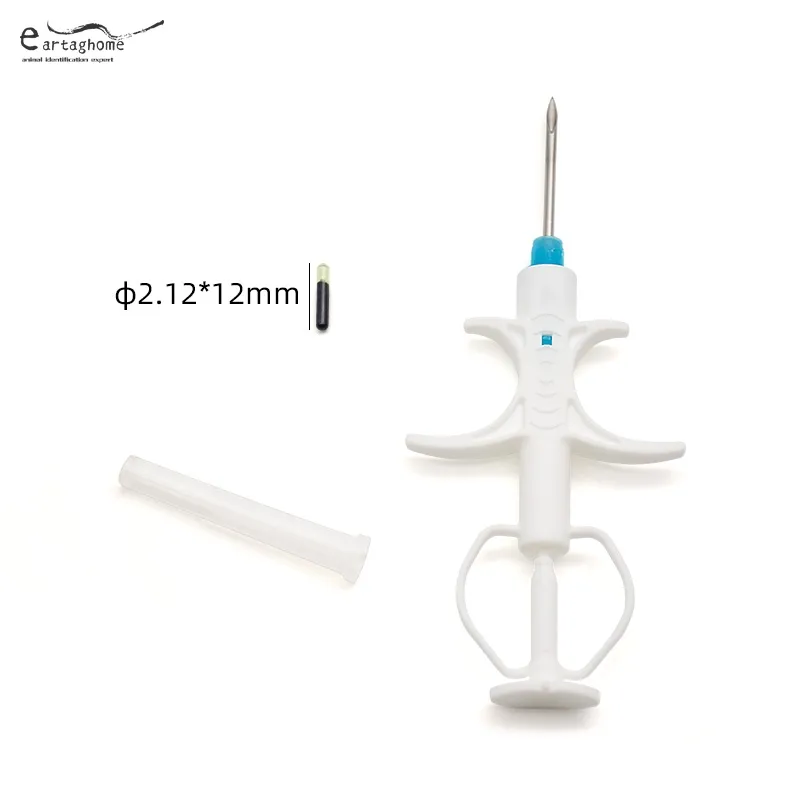

| Microchip Size | 2.12*12 mm (Standard Size) |
| Operating Frequency | 134.2 kHz |
| Protocols / Standards | ISO 11784 / ISO 11785 FDX-B |
| Chip Type | EM4305 / TK4100 / Hitag S256 (Optional) |
| Encapsulation Material | Bio-compatible
Glass |
| Coating Material | Anti-Drop / Anti-Migration Parylene Coating |
| Syringe Material | Medical-grade Polypropylene & Stainless Steel |
| Sterilization | EO Gas Sterilization |
| Reading Distance | 5 – 30 cm (Depends on reader performance & antenna size) |
| Read/Write Cycles | > 100,000 times |
| Data Retention | > 20 years |
| Operating Temperature | -20°C to +80°C |
| For Animals | Dogs, Cats, Sheep, Cattle, Pigs, Fish, Wild Animals |
