Smart ear tag SAH1208& Gateway SAH1209
- More than ten years of accumulated livestock data;
- Mature and reliable visual algorithms;
- Quick deployment and low cost;
- Supports customized development
Tag Integrated with temperature and acceleration sensors, with rechargeable Li-battery.

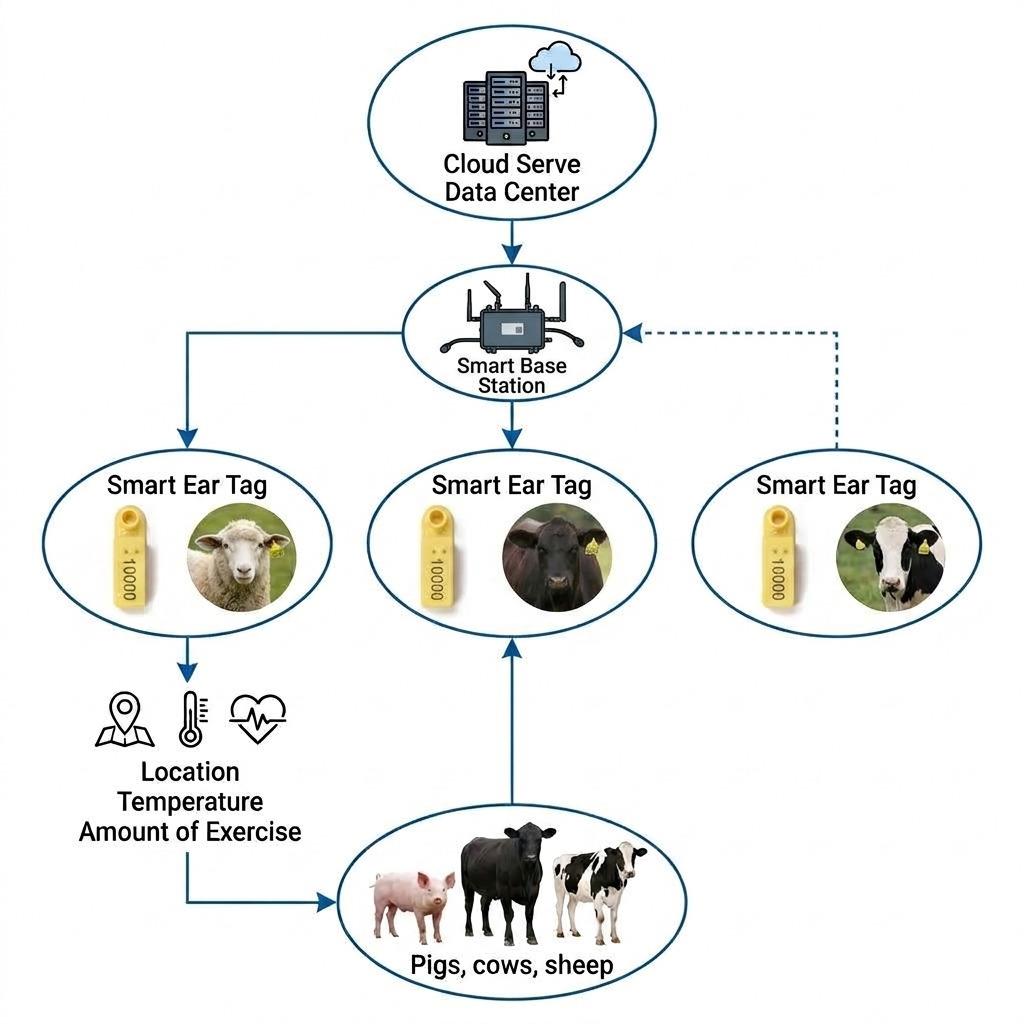

Automatically collect the information of “animal activity & body temperature” and sent to the gateway by Bluetooth transmission. Gateway uploads the data to cloud server platform through 4G wireless network. Monitor and track biological asset information in real time through computer or mobile phone APP, which is suitable for biological management and livestock real-time monitoring.

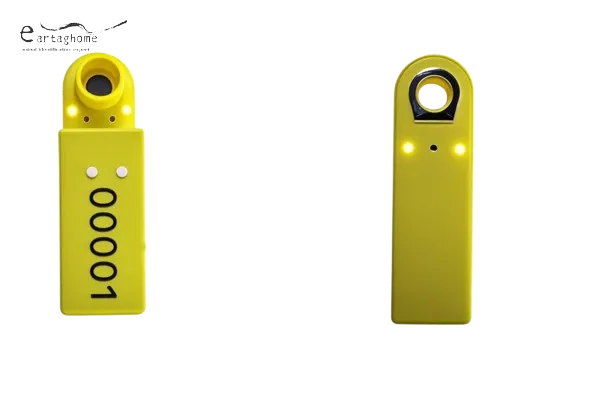

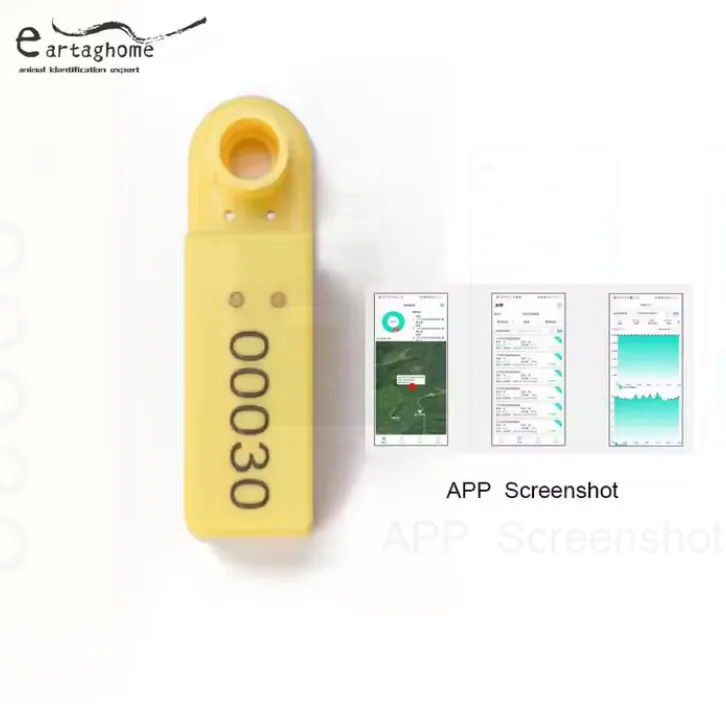

Smart Ear Tag Specifications
| Feature / Parameter | Product Technical Data |
| Model | SAH1208 |
| Transmission Protocol | Bluetooth 4.0 broadcast mode; scheduled broadcast once per hour (customizable) |
| Integrated Sensors | Temperature sensor and acceleration sensor |
| Data Tracked | Animal ID, body temperature and step count |
| Reading Range | 120 m radius |
| Battery | Rechargeable Li-polymer battery, 400 mAh; a full charge lasts up to 3 years; service life over 10 years |
| Panel Ear Tag Size | 3 × 3 × 1.3 cm |
| Stub Size | 30 mm |
| Data Packet Example | 09 09 48 4C 4B 5F 45 46 30 34 07 1E 00 00 00 00 03 20 |
| Data Packet Structure | Length / Type / Bluetooth Name / Length / Type / Step Count / Temperature / Battery Level |

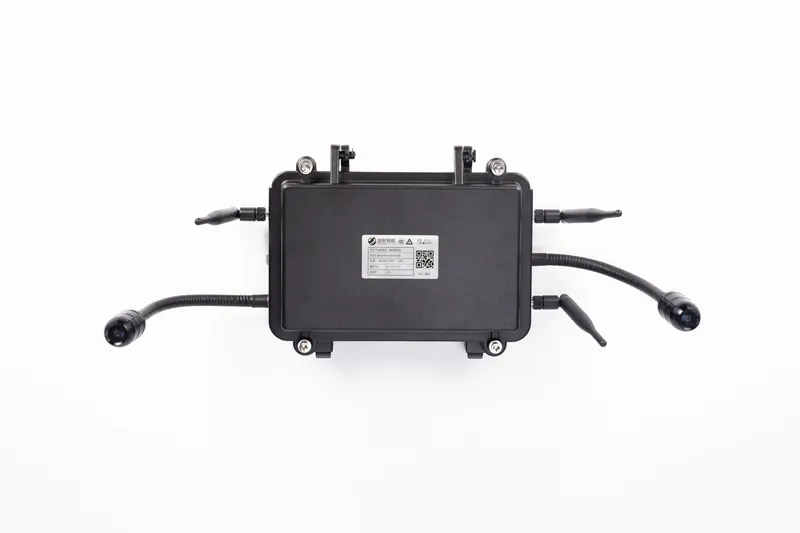

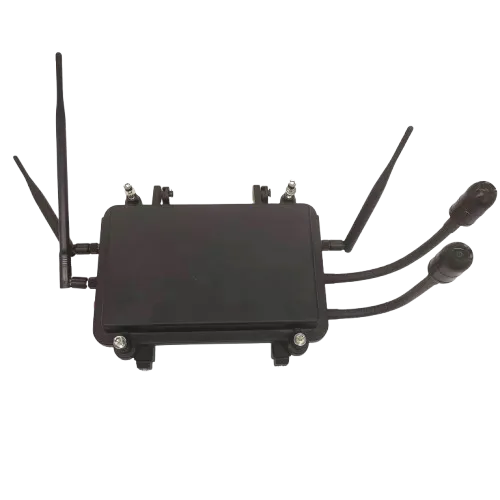

Gateway Specifications
| Feature / Parameter | Product Technical Data |
| Brand | Eartaghome |
| Model | SAH1209 |
| Method of Communication | BLE, 2G, 3G, 4G, 5G |
| Reception Coverage | 120 m radius |
| Ear Tag Capacity | ≥ 1000 pcs |
| Power Consumption | ≤ 3 W |
| Operating Temperature | -40 ~ 70 ℃ |
| Operating Humidity | 0 to 95% (relative humidity) |
| Power Supply | AC 220 V |
| Enclosure Protection Rating | IP65 |
| Dimensions | 230 × 200 × 70 mm |
Applications
- Biological Asset Management and Livestock-Backed Financing: gives lenders, insurers and auditors continuous, auditable proof of live inventory and animal health, making livestock easier to monitor and accept as collateral.
- Feedlot and Pasture Health Monitoring: body temperature and step count are recorded automatically, so fever and sudden drops in activity surface early, before performance losses spread through the pen.
- Commercial Beef and Dairy Operations: adds continuous health and activity records on top of existing feeding and milking routines, with no extra labour at the crush.
- National Traceability and Disease Control: supplies per-animal identity, temperature and activity data for regulatory traceability and government-backed livestock mapping programmes.
Smart ear tags
More Details
Our smart ear tags connect directly to the gateway, which transmits data to the cloud server via local 4G networks. You can then monitor all data in real time using our mobile app.
- Equipped with temperature and acceleration sensors, the device is powered by a high-capacity lithium-polymer battery.
- It automatically collects data on animal activity levels and body temperature.
- With a transmission range of up to 120 meters to the gateway(Beidou/GPS positioning).
- The gateway uploads data to the cloud platform via a 4G wireless network.

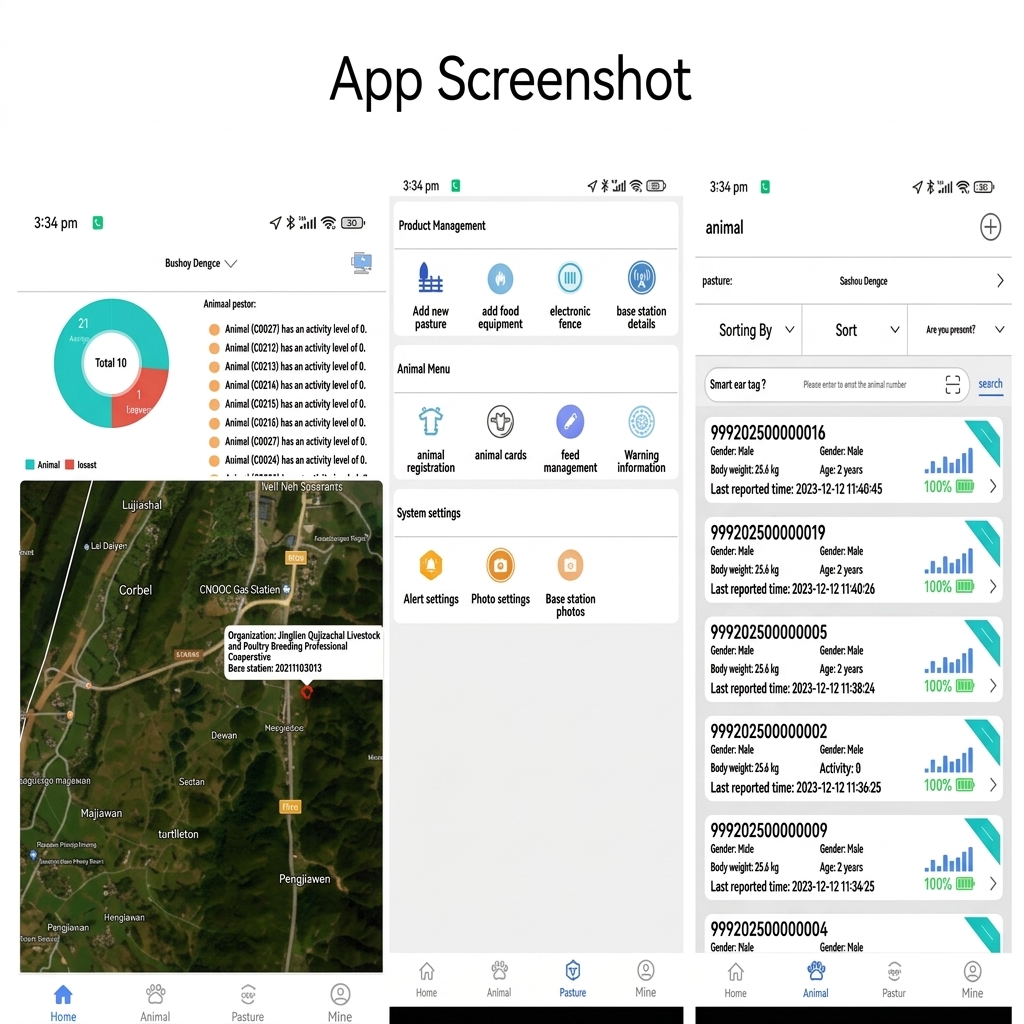

allowing users to monitor and retrieve information on biological assets in real time
through a computer or mobile app.
It is suitable for biological asset management and the monitoring of livestock used as collateral.
